SKU SUNPAL-HYBRID-INVERTER-HSI-5500P-5500W

Sunpal HSI 5500P Hybrid Inverter · 5500W

5.003 reviews
In Stock

5.5 kW / 11 kVA pure sine hybrid · 48V battery · 6 kW PV MPPT (1 tracker) · utility / generator input · parallel 1–6 · LCD + RS485/USB · 18-month manufacturer warranty. Ready stock Malaysia.

RM2,399.00

5.5 kW / 11 kVA
48V Hybrid
18-Month Warranty

5500W • 48V • 6 kW PV • Parallel ×6

In stock

Free shipping across Malaysia · PoslajuSame-day dispatch · West MY 1–2 days · East MY 1–3 days
Malaysia SupportLocal technical team
Secure CheckoutProtected payment
SKU: SUNPAL-HYBRID-INVERTER-HSI-5500P-5500W Category:

Power built for demanding systems

5.5 kW / 11 kVA pure sine hybrid · 48V battery · 6 kW PV MPPT · parallel 1–6 · 18-month manufacturer warranty. Ready stock Malaysia.

Spec5500W
Nominal Voltage48V
Nominal Voltage6 kW PV
SpecParallel ×6
Warranty ReadySerial-backed support
Quality AssuredChecked before dispatch
Malaysia SupportLocal help when you need it
Store ReadySized for Sunpal systems

Hybrid solar inverter · Factory datasheet · Malaysia stock

18-month warranty · Parallel 1–6

Sunpal HSI 5500P 5.5 kW / 11 kVA · 48V hybrid.

RM2,399.00

Wall-mount hybrid for PV + 48V battery + utility/generator — 6 kW MPPT on-chassis, pure sine 230Vac, parallel up to six. Specs match the Sunpal factory product sheet.

5500W / 11 kVA 48V bank 6 kW PV MPPT 18-month warranty
Sunpal HSI 5500P Hybrid Inverter · 5500W

48V hybrid · 6 kW PV · IP20 indoor.

5.5 kW Pure sine 230Vac — peak 11,000VA for motor starts.
48V Lead-acid / Li-ion / user-defined · 40–60Vdc range.
6 kW PV 1× MPPT · 120–450V · max 500Voc · 100A PV charge.
Parallel ×6 Scale single-phase stacks or three-phase when paralleled.

Factory-aligned

What the HSI 5500P delivers

5500W Pure Sine · 11 kVA Peak

Rated 5,500W continuous AC at 230Vac, 50/60Hz. Peak 11,000VA and 4HP motor capacity for pumps, compressors and workshop starts. Typical transfer ~10ms.

48V Hybrid Battery Port

Rated 48V (40–60Vdc). Compatible with lead-acid, Li-ion and user-defined profiles. Max PV charge 100A, utility/generator charge 60A, hybrid charge 100A.

6,000W PV · Single MPPT

One MPPT tracker: max array 6,000W, 22A input, 500Vdc Voc, MPPT window 120–450Vdc — size strings to the factory sheet before install.

Utility / Generator Ready

UPS mode 170–280Vac or APL mode 90–280Vac, 50/60Hz, 40A bypass overload. Keep grid or generator as a backup charge / AC path.

LCD · RS485 / USB · Optional Wi-Fi

On-unit LCD plus RS485, USB and dry contact. Optional Wi-Fi / GPRS module for remote monitoring when you need it.

Parallel 1–6 · 18-Month Warranty

Parallel up to six units. Compact 426×322×124 mm, 10.5 kg, IP20 indoor. Manufacturer warranty 18 months — register the serial after install.

Value proof

Why installers pick this hybrid

5.5 kW / 11 kVA Home and light-commercial AC headroom
6 kW PV on-chassis Solar charge + AC invert in one wall unit
Factory 18-month cover Serial-backed Malaysia support path

Best for

Common Malaysia use cases

48V home hybrid backup Shop / workshop loads LiFePO₄ 48V banks Up to 6 kW PV strings Parallel expansion

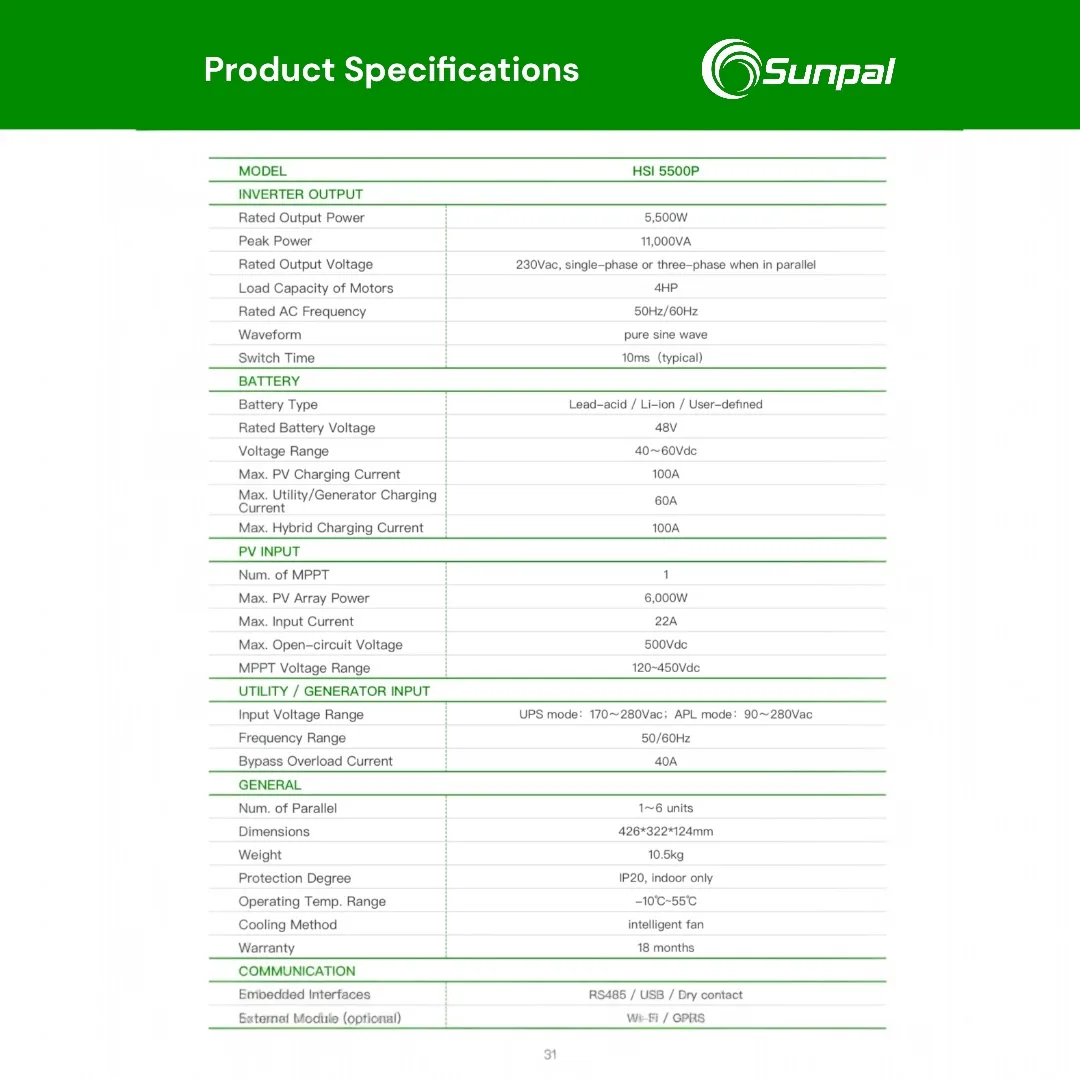

Specifications

HSI 5500P at a glance

Product Name Sunpal HSI 5500P Hybrid Inverter
SKU SUNPAL-HYBRID-INVERTER-HSI-5500P-5500W
Rated / peak power 5,500W / 11,000VA
Output 230Vac pure sine · 50/60Hz · ~10ms switch
Battery 48V (40–60Vdc) · Lead-acid / Li-ion / user-defined
Charge currents PV 100A · Utility/gen 60A · Hybrid 100A
PV input 1× MPPT · 6,000W · 22A · 500Voc · 120–450V MPPT
Utility / generator UPS 170–280Vac · APL 90–280Vac · 40A bypass
Parallel 1 to 6 units (3-phase when paralleled)
Size / weight 426 × 322 × 124 mm · 10.5 kg · IP20 indoor
Communication RS485 / USB / dry contact · optional Wi-Fi / GPRS
Warranty 18-month manufacturer warranty

Full printable datasheet →

FAQ

Before you order

What battery voltage does the HSI 5500P use?

48V nominal (40–60Vdc operating range). It is not a 12V inverter. Pair with a correctly sized 48V lead-acid or Li-ion / LiFePO₄ bank and set the charge profile to match the pack datasheet.

How much solar can I connect?

Factory max PV array power is 6,000W on one MPPT: max input current 22A, Voc up to 500Vdc, MPPT window 120–450Vdc. Stay inside those limits — WhatsApp Sunpal with your panel Voc/Isc if you want a string check.

Can I parallel more than one unit?

Yes — 1 to 6 units. Paralleled stacks can run three-phase. Match firmware, cable lengths and the battery bus carefully, or ask Sunpal before you stack.

Is this for outdoor install?

No. Protection degree is IP20 — indoor use only. Mount in a dry, ventilated space within −10°C to 55°C. Cooling is intelligent fan.

What warranty do I get?

Manufacturer warranty is 18 months per the factory product specification sheet. Keep your receipt and register the serial at sunpal.my/warranty after install.

Ready to hybrid

5.5 kW · 48V · Malaysia stock.

Add the HSI 5500P to your cart, or send Sunpal your loads and PV string plan for a quick size check.

Customer feedback

3 customer reviews

3 reviews for Sunpal HSI 5500P Hybrid Inverter · 5500W

5.0

Based on 3 verified reviews

  1. qistina99azman Verified buyer

    Inverter sampai cepat, packing ok. LCD senang faham, so far power rumah stable. Worth it 👍

  2. senja_150 Verified buyer

    Wall mount easy. WhatsApp support reply cepat when set priority. AC + fridge no issue so far. Recommend.

  3. hazim.garage Verified buyer

    Unit solid, fans quiet. Planning parallel second unit later. Good value for 5.5kW.
